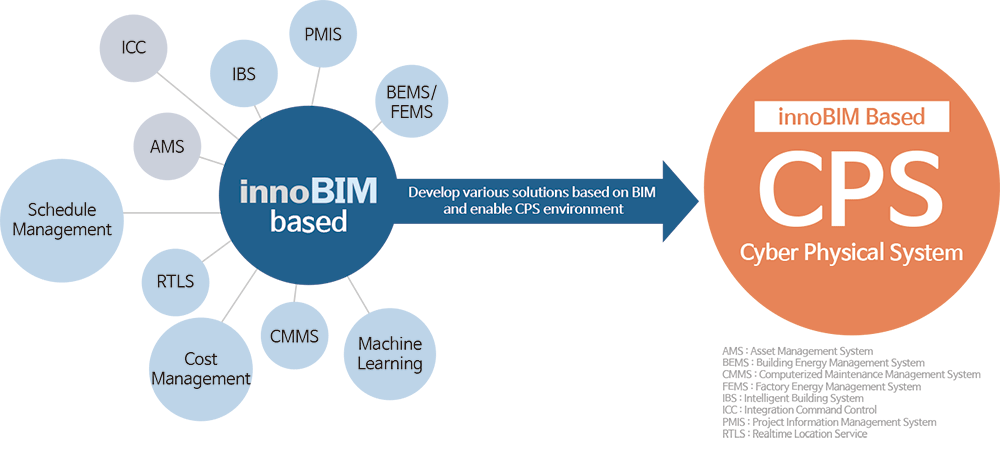

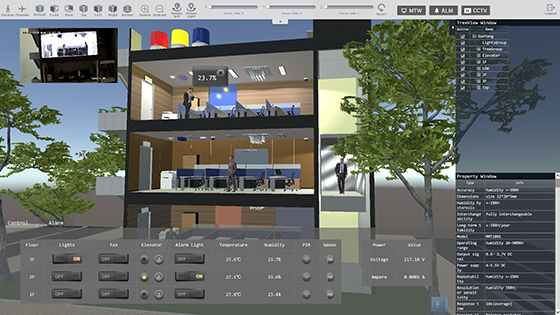

1. INNO-BIM is a solution that can save time, money and maximize asset value by managing the life cycle of buildings more efficiently through real-time monitoring and control of facilities using BIM data and FMS (Facility Management System).

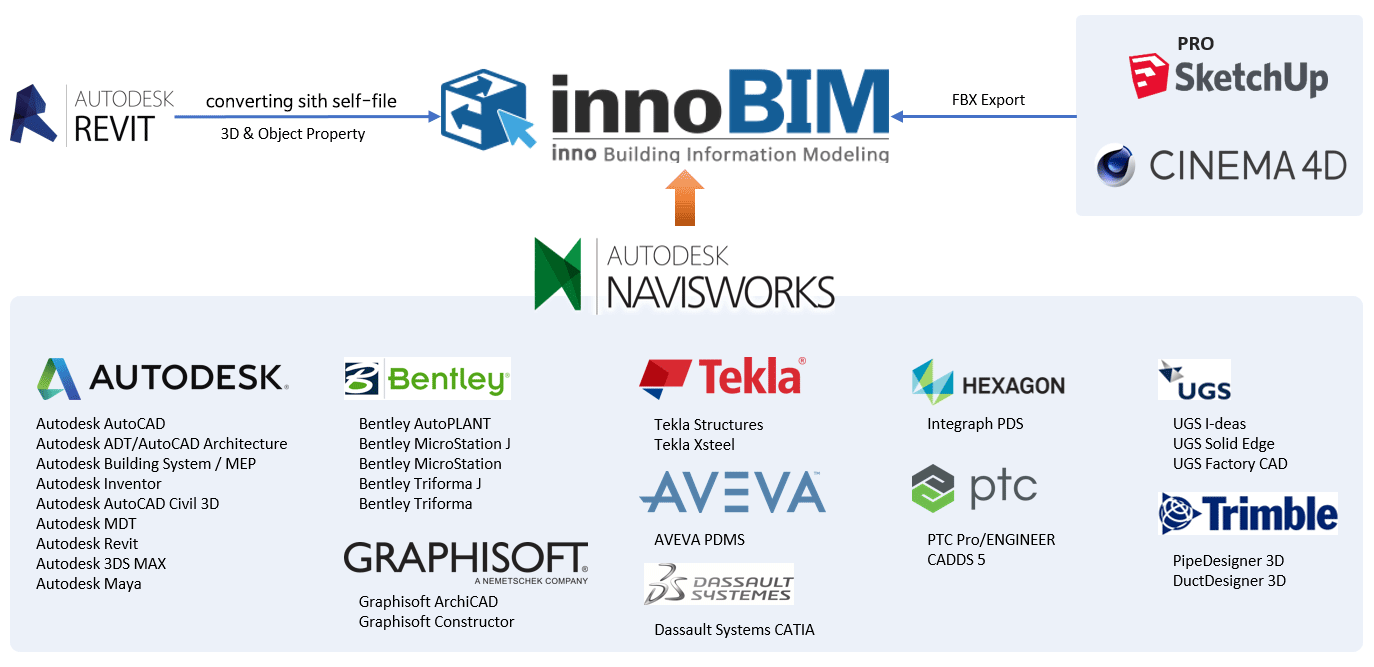

2. INNO-BIM can read / write 3D IFC models (IFC 2x3, IFC 4) as well as display meaningful data such as object attributes.
OS-independent HTML5 standard web browser (Chrome, Firefox, IE, IE Edge, Safari)
WPF application in Windows environment
It is possible to display IFC objects by selecting and displaying IFC objects, and to express architecture and MEP information by using Federation function.

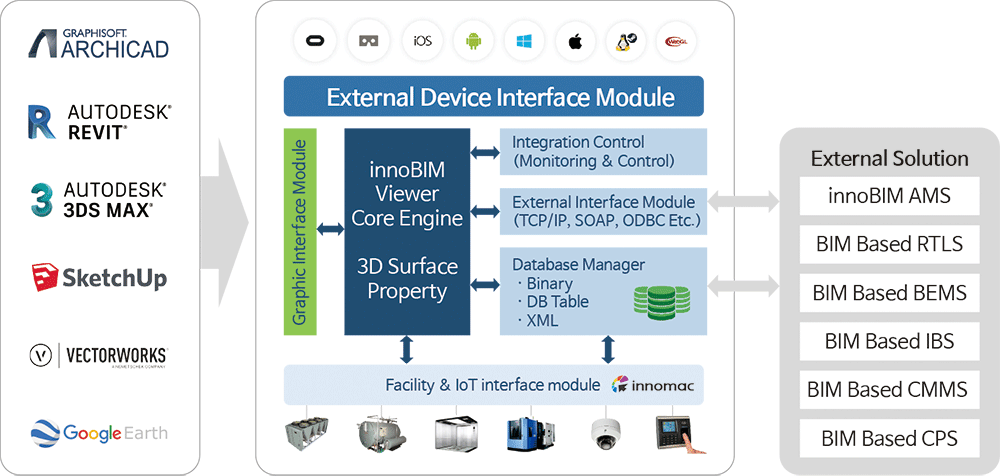

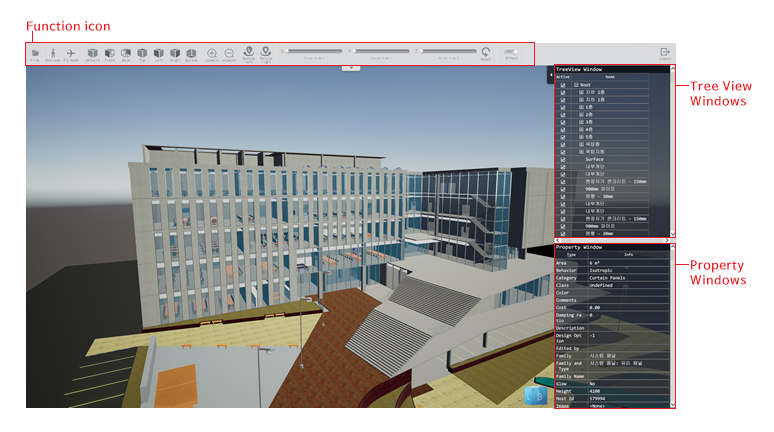

INNO-BIM is divided into menu part, PROPERTIES part, VIEW part and CAMERA part. In addition, DEVELOPER WINDOWS is provided to analyze IFC files through COMMANDS or to support VALIDATION check function. Each WINDOWS supports FLOAT, DOCK, DOCK AS TABBED DOCUMENT, etc., so you can freely place WINDOWS.
Through SPATIAL VIEW of INNO-BIM, you can check the ELEMENT that make up the space. If you select ELEMENT in SPATIAL VIEW, the object is highlighted in 3D VIEW.
Also, if you select an object on 3D VIEW, ELEMENT of SPATIAL VIEW is selected.
Through INNO-BIM's GROUP, you can see the groups for each level, and you can see the elements that make up the group. When you select an element, it is focused on that element on the 3D VIEW.
You can check the attribute information of the selected element in the SPACIAL VIEW window through INNO-BIM's PROPERTIES OBJECT, TYPE, MATERIALS, PROPERTIES, QUANTITIES.
The INNO-BIM's STYLE CONFIGURATION allows you to display and hide the elements defined in IFC4 and IFC2x3.
INNO-BIM has a VALIDATION check function for the marked IFC file, so it can be used as an auxiliary check tool for IFC files. It also provides a simple COMMAND function to examine the elements of the IFC model.
Click on the entity displayed in the validation window to display the element in the 3d view window.
In the command window, you can get information about the IFC element through commands such as select count IFCWall.

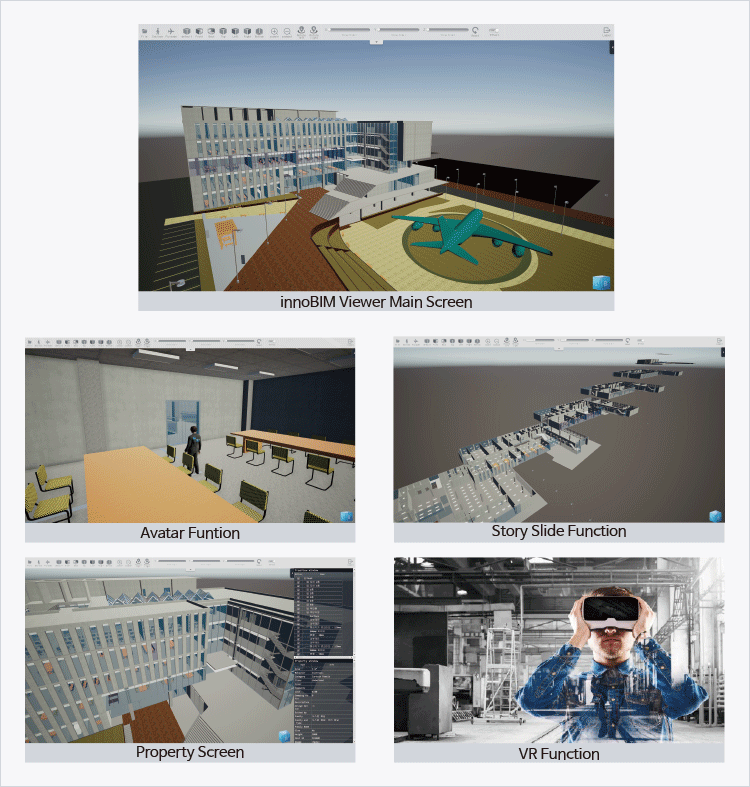

INNO-BIM can display and render 3D IFC models (IFC 2x3, IFC 4) as well as display meaningful data such as object properties.
Provides zoom function, rotation and movement function on web page. It also provides the ability to download IFC files.
